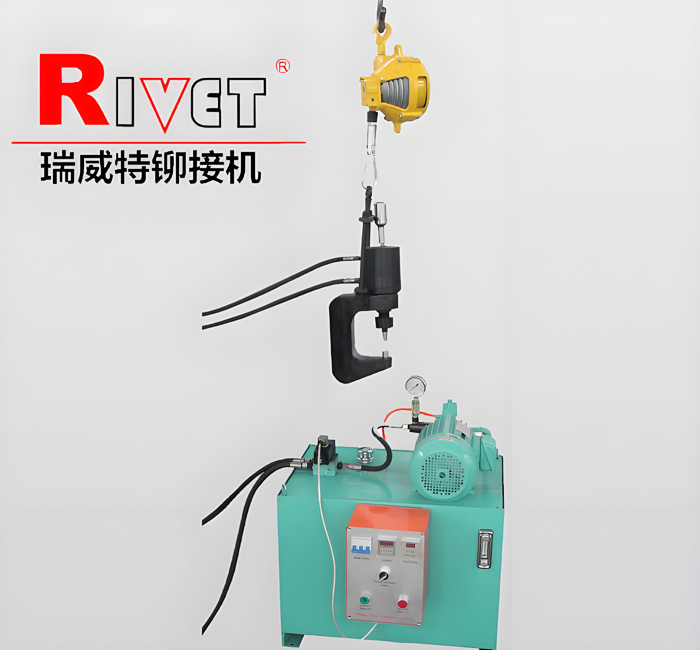

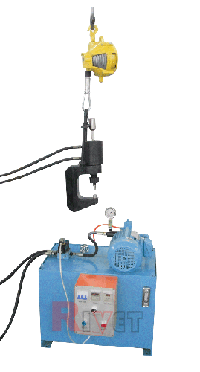

XGM-5A(Hanging riveting machine)

Characteristics:

■Hanging and movable style

■Max.process ability Ф8mm (Aluminium rivet)

■Manual and automatic switching

■Hydraulic power pack connect with variety of C-gun available

■Any direction operation

■Short-circuit protector

  XGM-5A is a kind of smaller hydraulic power pack with C-gun apply to ventilation engineering, duct flanges, ladder hinge,house ladder etc, it has characteristics of compact and lightweight, firmly after processed, easy to operating and maintenace...

Specifications:

▲Pressure                                            80Kn

▲Oil punp output                                   31.5MPa

▲Frequency of process                       14-25 Times/Min

▲Process diameter                              Φ5mm

▲Rated flux                                           18L/Min

▲Poston stroke                                    20mm/ 30mm optional

▲Power                                                 2.2Kw

▲Throat depth                                     150mm

▲Oil-tank volume                                 100 L

▲Length of hose                                  8M/ 10M Optional

▲Weight                                               80Kg
