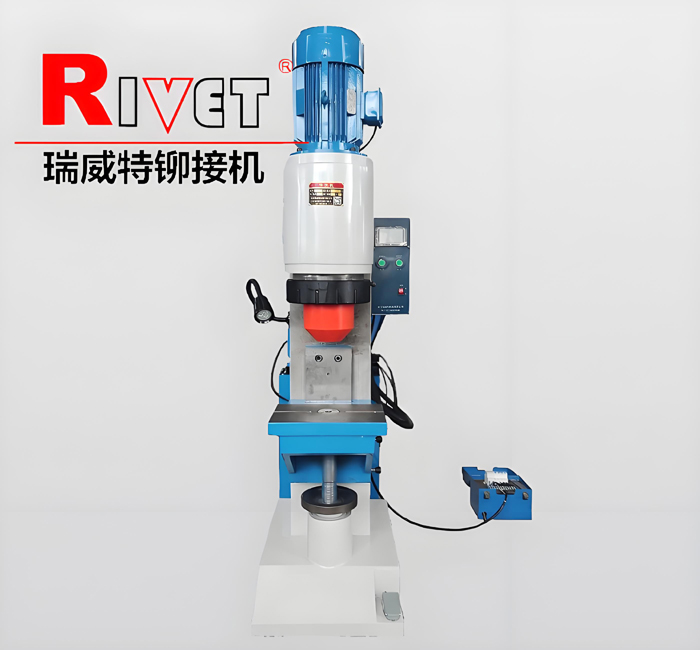

BM30-K Fast speed riveting machine

Characteristics:

■Heavy duty with vertical style

■Riveting diameter Ф 30mm ( solid  steel rivet )

■Workbench adjustable

■Hydraulic driven

■Stroke speed 15mm/Sec.

■Pressure by stepless regulation

■Double-hand button or foot pedal

■Rotary part protected

■Set riveting time at free

Specification:

▲Riveting diameter                        Ф 30mm (solid  steel rivet )

▲Riveting pressure                          90Kn

▲ Stroke Length Range                   30mm

▲ Stroke speed                                15mm/Sec.

▲Available work space                    280mm

▲Throat depth                                  225mm

▲Riveting tool length                       62mm

▲Eccentric angle                             4°

▲Motive force                                   Hydraulic

▲Oil-tank volume                             120Liters

▲Pressure oil brand                        46# ISO

▲Workbench dimensions               430mm×290mm

▲Power                                             6.4Kw

▲Physical size                                 1100mm×600mm×2105mm

▲Net weight                                     1500Kg
