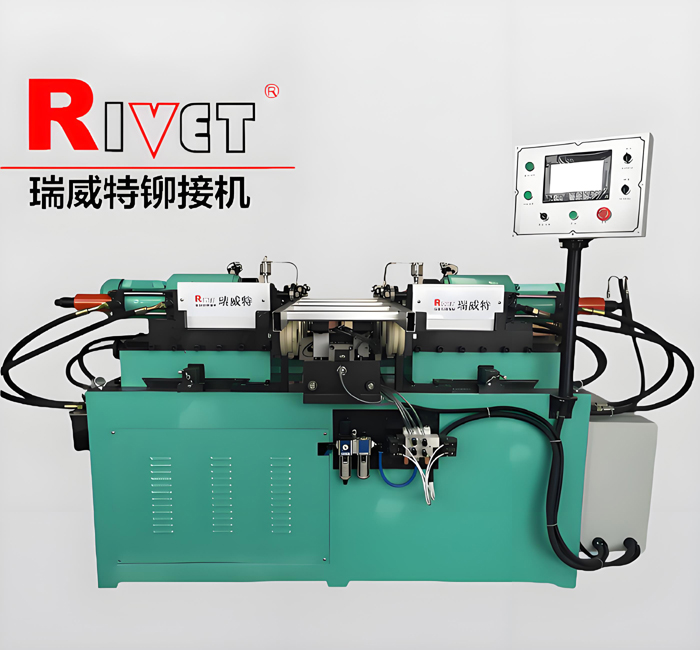

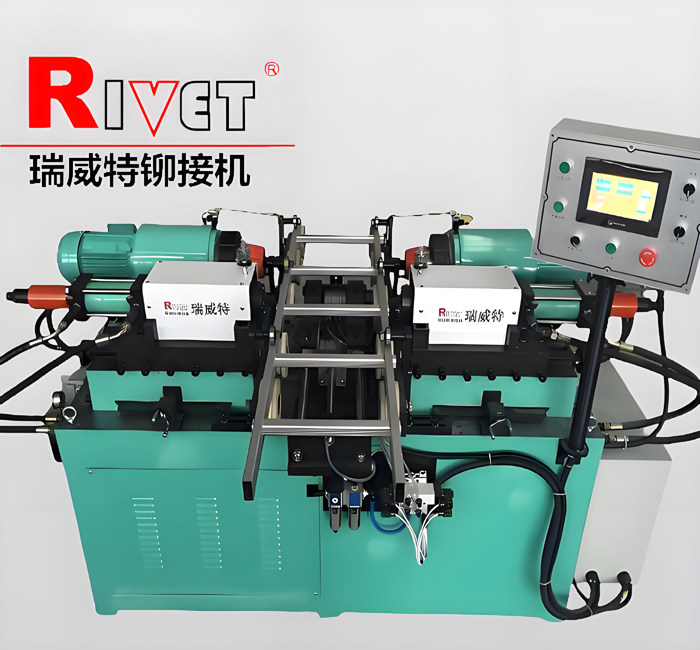

Automatic ladder machine (ZMJ-Auto)

       After decades of development and research that we have accumulated wealth of experience to aluminium ladder manufacturing and technology, and to the market has a profound understanding.We have summary the single expanding and flaring machine and  based itself to innovation and development, we are developed automatic ladder machine successfully.

      The function is more powerful,wide range of adjustment,applicability more ,the machine automatic transport ladder (no need manual auxilliary to push), flaring system automatic  by aerosol lubrication, the lubrication frequency can be change according to parameter settings to achieve through touch screen. Ladder width and distance of rungs can be adjusted.

      Application to single ladder, multi-purpose ladder, folding ladder, telescopic ladder etc.

Specifications:

▲Power                                       6.6Kw

▲Pressure                                  60Kn

▲System pressure                     6 MPa

▲Oil tank capacity                     200 Liters

▲Pressure oil brand                 46# ISO

▲Expanding range                   Square , rectangle rung,Oval rung

▲Expanding system move      150mm x 2 (adjustable)

▲Stroke of cylinder                  150mm (adjustable)

▲One working cycle                 0.3-99 Seconds (adjustable) one step

▲Ladder's width                       260-550mm (adjustable)

▲Teeth height on rung             05.mm -1.5mm adjustable

▲Flaring range                         Square, O-shape, rectangle, D-shape tube etc.

▲Cylinder stroke                      30mmX2

▲Flaring system move            150mmx2

▲Tool eccentric                         4°

▲Distance between rungs      250mm-310mm(adjustable)

▲ Physical size                   2400mmX1500mmX1700mm

▲Net weight                       1800Kg
