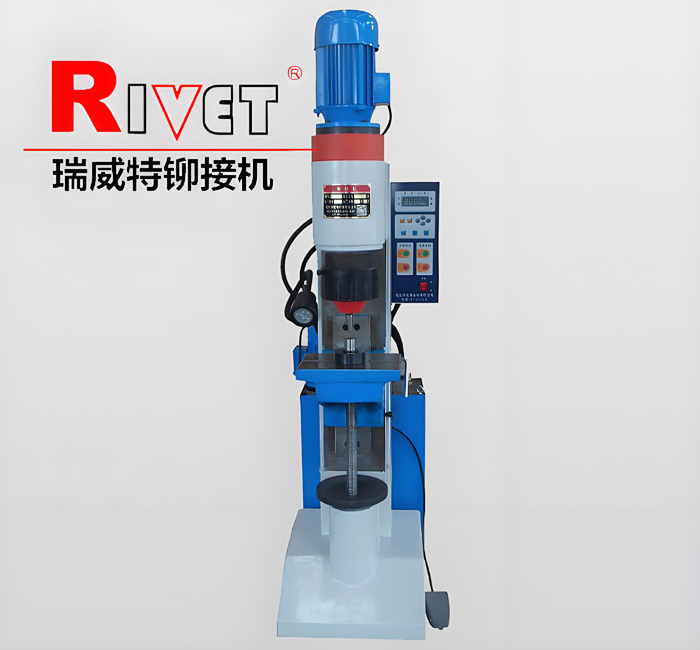

JM9-C (Hydraulic radial riveting machine)

Characteristics:

■Vertical style

■Radial structures

■Max riveting diameter Ф 9MM (solid steel rivet)

■Workbench adjustable

■Hydraulic driving with stepless regulation

■Double-hand button or foot pedal as optional

■Set riveting time as will

■Manual and auto functions

JM9-C

Scope of application: The instrument appearance, daily hardware and electrical  components ,automobile parts etc.(Customized availab)

      The model of JM9-C is a kind of medium sized radial  riveting machine with hydraulicdriven. The machine applied advanced orbital technology to performance rivets by cold forming,T-slot of workbench to fixing clamping available and workbench adjustment upand down to meet variety of  workpieces's body and shape's requirement. The fixturepositiong hole is coaxial with spindle to insure riveting process accuracy, electric control system equipped with counter and time relay to made operation easy and simple. Hydraulic system equipped with throttle valve to control rivetin speed effectively, and oil-tank joint with fuselage or separated from fuselage as optional easy to transportation and move.

Specification:

▲Max riveting diameter                   Ф 9mm ( solid steel rivet )

▲Max riveting pressure                   14Kn

▲Stroke Length Range                    60mm

▲Available working space              240mm

▲Throat deep                                   135mm

▲Riveting tool length                        50mm

▲Eccentric angle                                4°

▲Motive force.                                  Hydraulic

▲Oil-tank volume                              60 Liters

▲Prssure oil brand                           46# ISO

▲Dimension of workbench              260mmX200mm

▲Power                                             0.92Kw

▲Physical size                                 700mm×500mm×1470mm

▲Net weight.                                    320Kg
