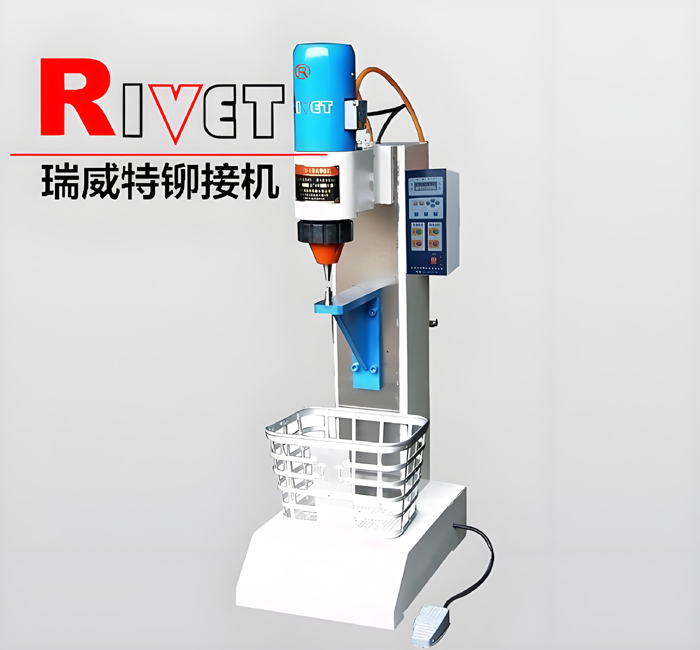

JM9-Cantilelver riveting machine

Characteristics:

■Workbench by cantilever

■Power head fixed or movable as optional

■Suitable the special requirement of throat depth

■Hydraulic or pneumatic as optional

■Pressure display and adjustable

■Rotary part protected

■Can obligate the mouth for fixture

■Cantilever bench fixed

■Display both riveting time and riveting pieces

■Manual and automatic functions

■Smooth and clean after processed

■Stable withou shaking during processing

JM9-Cantilever

      Cantilever riveting machine applied of radial riveting machine power head, riveting process are stable and smoothly of surface after processed. It's has plenty of adjustment function such stroke, riveting pressure, stroke speed,etc. This machine is applicable complicated workpiece such as cylindraceous, frame shape, round parts etc, which are beyond common riveting machine processed.

Specification:

▲Max riveting diameter                           Ф 9mm ( solid steel rivet )

▲Max riveting pressure                           14Kn

▲Stroke Length Range                            30mm

▲Working space                                     Customized

▲Throat depth                                          125mm

▲Riveting tool length                                50mm

▲Eccentric angle                                       4°

▲Motive force                                            Hydraulic

▲Area of the table surface                      Narrow support

▲Power                                                     0.92Kw

▲Physical size                                 700mm×500mm×1417mm

▲Net weight                                              250Kg
