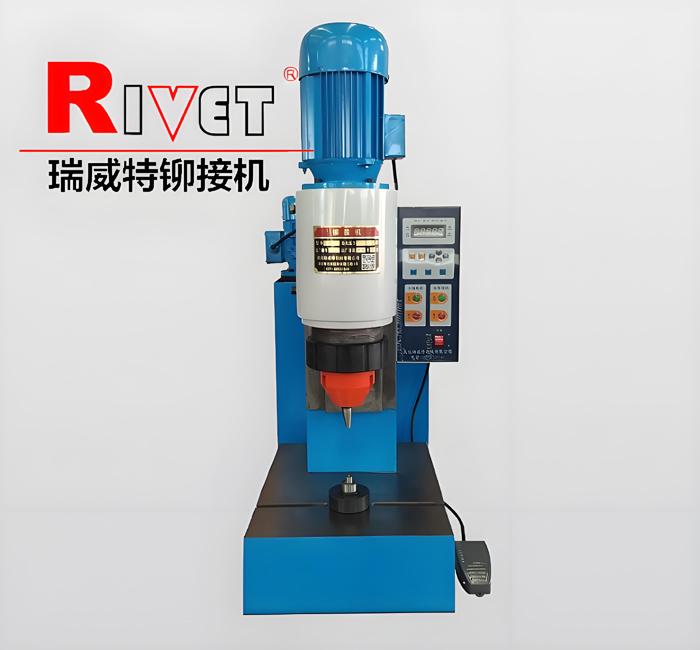

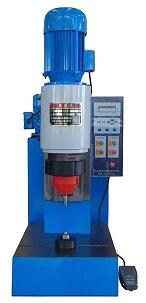

JM12T (Desktop radial riveting machine)

Characteristics:

■Desktop style

■Max riveting diameter Ф 12mm

■Power head movable

■Pressure by stepless regulation

 ■Double-hand button or foot pedal

■Rotary part portected

■Automatic and manua functions

    JM12T

Scope of applications:Daily hardware,electronic products,hardware  tools,automobile parts etc.(Customizd available)

     JM12T is a kind of medium sized radial riveting machine and hydraulic drive. It has applied of advanced radial technology by cold formation. The power head adjustment up and down to meet variety of workpiece's body and shape 's requirement , the positioning hole is coaxial with spindle to ensure riveting process accuracy. Hydraulic system equipped with throttle valve to control piston speed effectively. Electric control system equipped with counter and time relay to make the operation more easy and simple.

Specification:

▲Max riveting diameter                 Ф12mm ( solid steel rivet )

▲Max riveting pressure                 20Kn

▲Stroke Length Range                 30mm

▲Available work space                 220mm

▲Throat depth                                160mm

▲Riveting tool length                     50mm

▲Eccentric angle                            4°

▲Motive force                                Hydraulic

▲Oil-tank volume                           60Liters

▲Pressure oil brand                     46# ISO

▲Workbench dimensions            360mm×290mm

▲Power                                         1.3Kw

▲Physical size                              500mm×400mm×980mm

▲Net weight                                   300Kg
