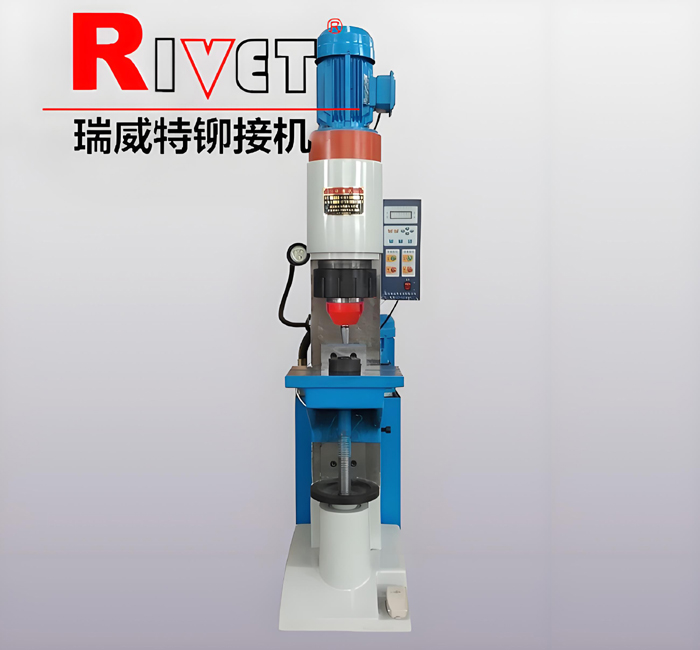

JM16-C (Hydraulic radial riveting machine)

Characteristics:

■Vertical style

■Workbench movable

■Max riveting diameter Ф 16mm

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set processing time as will

Specification:

▲Max riveting diameter                          Ф 16mm ( solid steel rivet )

▲Max riveting pressure                          34Kn

▲Stroke Length Range                          60mm

▲Available work space                          200mm

▲Throat depth                                         195mm

▲Riveting tool length                              62mm

▲Eccentric angle                                     4°

▲Motive force                                         Hydraulic

▲Oil-tank volume                                    60 Liters

▲Pressure oil brand                              46# ISO

▲Area of the table surface                   350mm×285mm

▲Power                                                  2.2Kw

▲Physical size                                       850mm×600mm×1680mm

▲Net weight                                           570Kg
