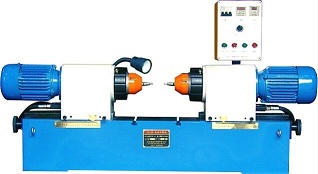

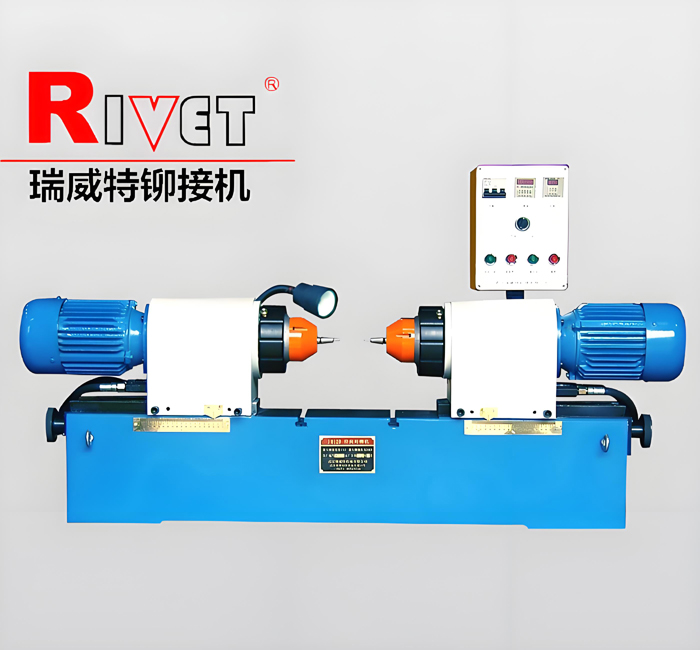

JM16D (Double head riveting machine)

Characteristics:

■Horizontal style with double head

■Max riveting diameter Ф16mm

■Radial structure

■Double power head adjustable

■Bothhand engage button or foot pedal as optional

■Protection mask covered rotary parts

■Stroke speed adjustable

■Automatic and manual functions

■Setting riveting machine as will

JM16D

Scope of applications : The instrument appearance , daily hardware ,metals and    electrical  equipment etc.(Customized available)

     JM16D is hydraulic double head riveting machine, the machine assembled by double radial riveting machine's power head and it special for processing double side of rivet or metal pin. The stroke speed and return speed can be adjusted by regulating valve effectively. positioning hole on bench with T-slot are available for holding the workpiece .Multi-adjustment facilities of machine are more convenience of operation.

Specification:

▲Max riveting diameter                      Ф 16mm ( solid steel rivet )

▲Max riveting pressure                      34Kn

▲Stroke Length Range                      30mmx2

▲Distance between the the tools      380mm

▲Throat depth                                     155mm

▲Riveting tool length                           62mm

▲Eccentric angle                                  4°

▲Motive force                                     Hydraulic

▲Oil-tank volume                               80 Liters

▲Pressure oil brand                          46# ISO

▲Power                                               4.4Kw

▲Physical size                                  300mm×400mm×1400mm

▲Net weight                                       450Kg
