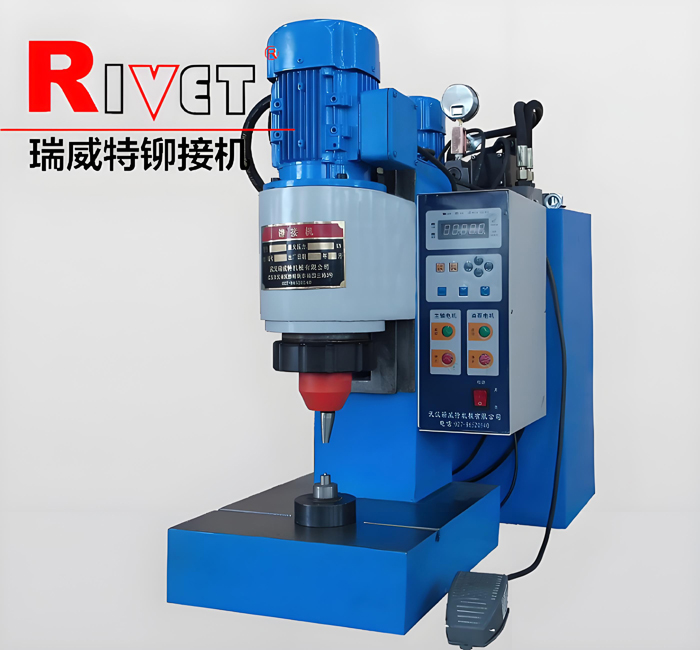

BM6T (Orbital riveting machine)

Characteristics:

■Desktop style

■Process Dia. Φ6mm

■Hydraulic force

■Pressure by stepless regulation

■Double-hand buttons or foot pedal

■Rotary part protected

■Power head movable

■Automatic and manual functions

■Setting riveting time at free

■Customized available

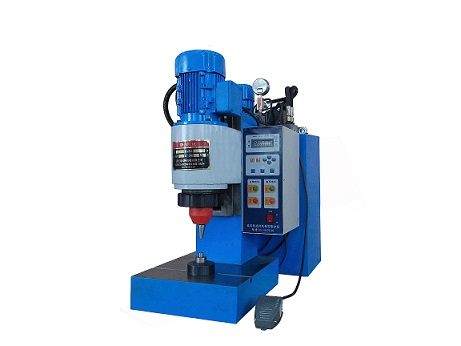

BM6T

Scope of applications:Daily hardware, electronic products,automobile parts etc.

        BM6T is a kind of desktop with hydraulic orbital riveting machine, and for rivet's cold formation. It is propitious to process car part such as door lock, window wiper, window regulator, clutch disco, brake shoe and linings etc. Daily hardware, mine-machinery.building tool such as scaffolding, swivel coupler etc. medical instrument. Electrinician tool, electrinical prdoucts, toy products etc.

Specification:

▲Riveting diameter                        Ф 6mm ( solid steel rivet )

▲Riveting pressure                         9Kn

▲Stroke                                            20mm

▲Working space                             150mm

▲Throat depth                                 125mm

▲Riveting tool length                       50mm

▲Eccentric angle                             4°

▲Motive force                                  Hydraulic

▲Oil-tank capacity                           60 Liter

▲Hydraulic oil brand                       46# (ISO standard)

▲Workbench dimensions               320mm×220mm

▲Power                                           0.92Kw

▲Physical size                                400mm×350mm×800mm

▲Net weight                                   150Kg
