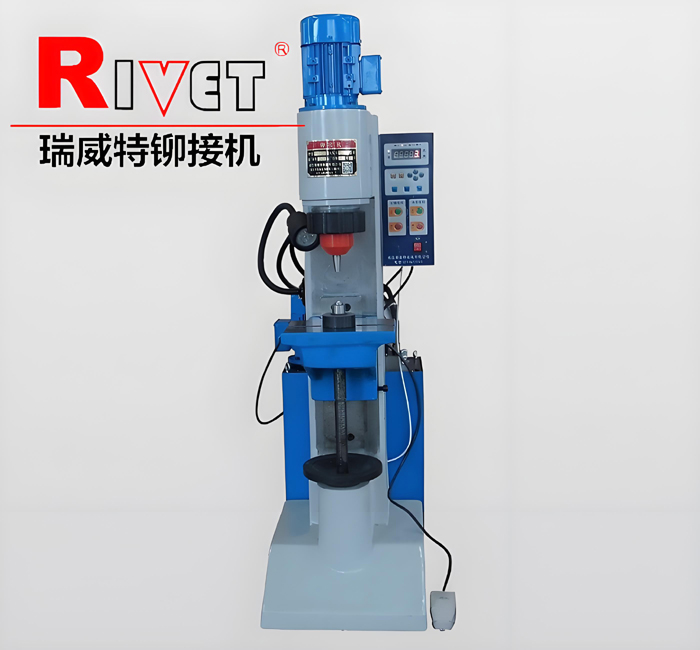

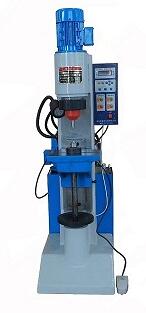

BM9(Hydraulic orbital riveting machine)

Characteristics:

■Medium sized with vertical style

■ Processing Dia.Φ9mm (solid steel rivet)

■Hydraulic drive with stepless regulation

■Security mask covered rotating part

■Workbench adjustable with large space available

■Setting riveting time as will, manual ,auto switching

■Can reserve hydraulic connector for fixture

■Hydraulic system and fuselage can be separated

■Customized available

BM9

Scope of application: instrumentation, hardware, appliances etc

         BM9 is hydraulic orbital riveting machine, and for medium sized rivets cold forming.It is protitious to processing car parts such as door lock. window wiper, window glass regulator, clutch disco, brale shoe and linings, engine cap, ball joint, universal joint etc.daily hardware, mini-machinery, building tools such as scaffolding, swivel coupler etc.medical instrument, electrinian tools etc.

Specification:

▲Riveting diameter                   Ф 9mm (solid steel rivet )

▲Riveting pressure                    14Kn

▲Stroke                                      30mm

▲Available working space          270mm

▲Throat depth                            135mm

▲Riveting tool length                 50mm

▲Eccentric angle                         4°

▲Motive force                            Hydraulic

▲Oil-tank volume                       60Liters

▲Pressure oil brand                    ISO 46#

▲Area of work bench                 360mm×290mm

▲Power                                      0.92Kw

▲Physical size                           700mm×500mm×1417mm

▲Net weight                               250Kg
