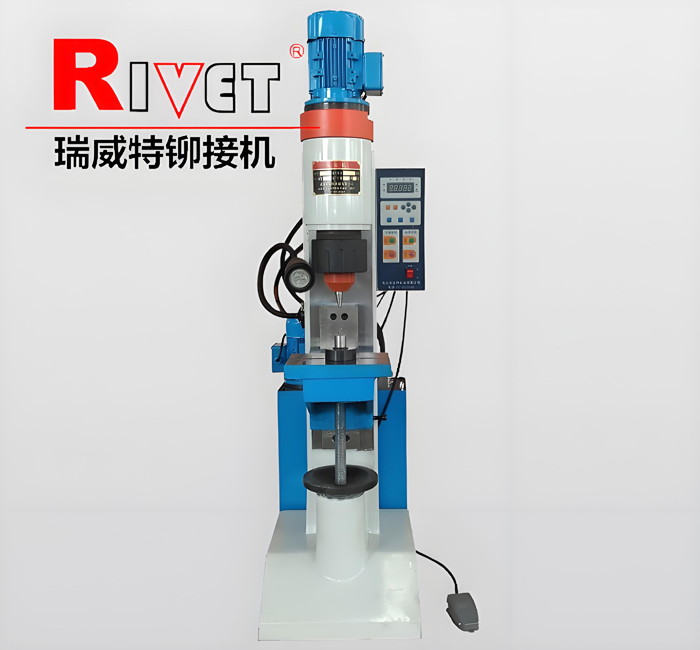

BM9-C (Orbital riveting machine)

Characteristics:

■Medium sized vertical style

■Workbench adjustable up and down

■Hydraulic driven

■Pressure by stepless regulation

■Rotary part protected

■Set processing time as will

■Double hand botton or foot pedal

BM9-C

Scope of applications:Daily hardware, electrinic products, automobile parts etc.

Customized available:

       The model of BM9-C is a kind of medium sized orbital riveting machine with hydraulicdriven. The machine applied advanced orbital technology to performance rivets by cold forming,T-slot of workbench to fixing clamping available and workbench adjustment upand down to meet variety of  workpieces's body and shape's requirement. The fixturepositiong hole is coaxial with spindle to insure riveting process accuracy, electric control system equipped with counter and time relay to made operation easy and simple. Hydraulic system equipped with throttle valve to control rivetin speed effectively, and oil-tank joint with fuselage or separated from fuselage as optional easy to transportation and move

Specification:

▲ Riveting diameter                       Ф 9mm ( solid steel rivet )

▲ Riveting pressure                        14Kn

▲Stroke Length Range                    60mm

▲Available working space              240mm

▲Throat deep                                   135mm

▲Riveting tool length                       50mm

▲Eccentric angle                              4°

▲Motive force.                                  Hydraulic

▲Oil-tank volume                              60 Liters

▲Prssure oil brand                           46# ISO

▲Dimension of workbench              260mmX200mm

▲Power                                             0.92Kw

▲Physical size                                 700mm×500mm×1470mm

▲Net weight.                                    320Kg
