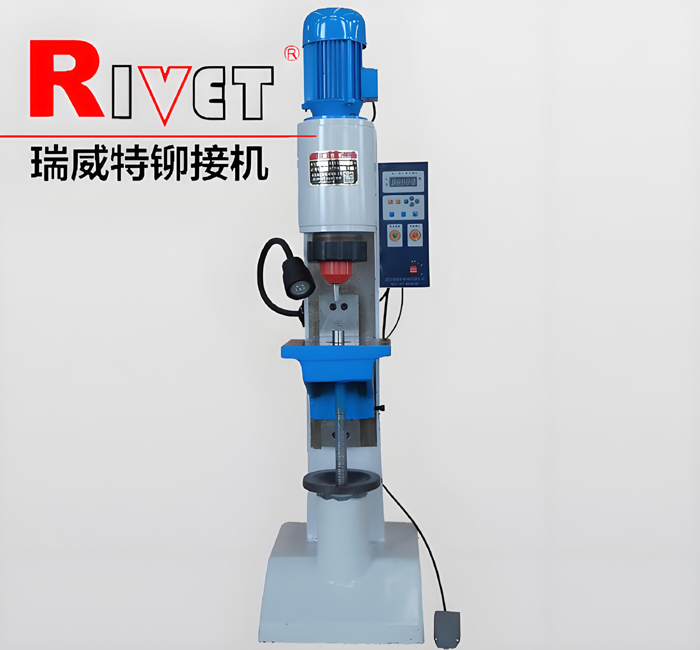

BM9Q (Orbital pneumatic riveting machine)

Characteristics:

■Medium sized vertical style

■Rrocessing Dia.Φ9mm

■Pneumatic driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions

BM9Q

Scope of application: instrumentation, hardware, electronic products, automobile parts etc

Customized available:

      The model of BM9Q is a medium sized orbital riveting machine with pneumatic force,vertical style, machining process isstable and perfect result due to applied advanced orbital technology, T-slot fixing the clamping appaavailable,positioning hole is coaxial with spindle to insure the riveting accuracy. Pneumatic system equipped with two way throttlevalves to control stroke speed and return speed effectively. Power head fixed and bench adjustment up and down to meet different workpiece's body and shape. Electricity control system equipped with counter and time relay to conveniency operation.

Specification:

▲Riveting diameter                              Ф 9mm ( solid steel rivet )

▲Riveting pressure                                14Kn

▲Stroke                                                  30mm

▲Available working space                     245mm

▲Throat depth                                       160mm

▲Riveting tool length                             50mm

▲Eccentric angle                                    4°

▲Motive force                                        Pneumatic

▲Workbench dimensions                      260mm×200mm

▲Power                                                   0.55Kw

▲Physical size                                         700mm×500mm×1570mm

▲Net weight                                          300Kg
