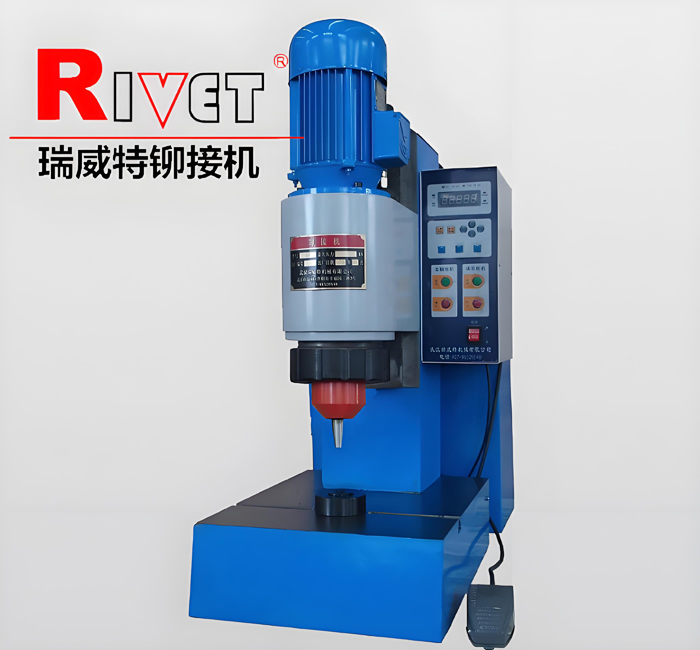

BM9T (Orbital riveting machine)

Characteristics:

■Medium sized desktop style

■ Riveting diameter Ф 9mm

■Power head adjustable

■Hydrauilc driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions

BM9T

Scope of applications : Daily hardware, electronic products, toy  products, automobile products etc.

      BM9T is a kind of medium sized orbital riveting machine and hydraulic drive. It has applied of advanced orbitaltechnology by cold formation. The power head adjustment up and down to meet variety of workpiece's body and shape 'srequirement , the positioning hole is coaxial with spindle to ensure riveting process accuracy. Hydraulic system equippedwith throttle valve to control piston speed effectively. Electric control system equipped with counter and time relay to makethe operation more easy and simple.

Specification:

▲ Riveting diameter                            Ф 9mm ( solid steel rivet )

▲ Riveting pressure                              14Kn

▲Stroke Length Range                        30mm

▲Available working space                    220mm

▲Throat depth                                     160mm

▲Riveting tool length                           50mm  standard

▲Eccentric angle                                    4°

▲Motive force                                      Hydraulic

▲Oil-tank volume                                 50 liters

▲Pressure oil brand                              46# ISO

▲Workbench dimensions                     360mm×290mm

▲Power                                                  0.92Kw

▲Physical size                                       500mm×400mm×980mm

▲Net weight                                          280Kg
