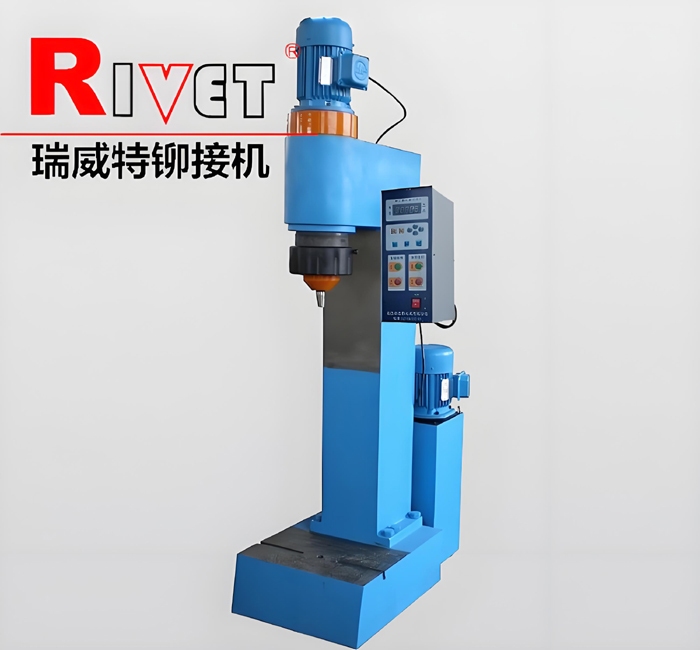

BM9L (Orbital riveting machine)

Characteristics:

■Vertical style with large space

■Hydraulic driven or pneumatic as optional

■Pressure by stepless regulation

■Double-hand buttons or foot pedal

■Rotary part protected

■Oil tank joit or separated with machine

BM9L

Scope of applications :Daily hardware, eclectronic products, automobile products  etc.

Customized available:

         BM9L is a kind of vertical orbital riveting machine with large space to meet special product's requirement, such as large body, tubbish parts and long axis etc.

Specifications:

▲Riveting diameter                             Ф 9mm ( solid steel rivet )

▲Riveting pressure                              14Kn

▲Stroke Length Range                            30mm

▲Available space                                     680mm

▲Throat depth                                          125mm

▲Riveting tool length                                50mm

▲Eccentric angle                                      4°

▲Motive force                                            Hydraulic

▲Area of the table surface                      360mm×290mm

▲Power                                                     0.92Kw

▲Physical size                                 700mm×500mm×1417mm

▲Net weight                                              250Kg
