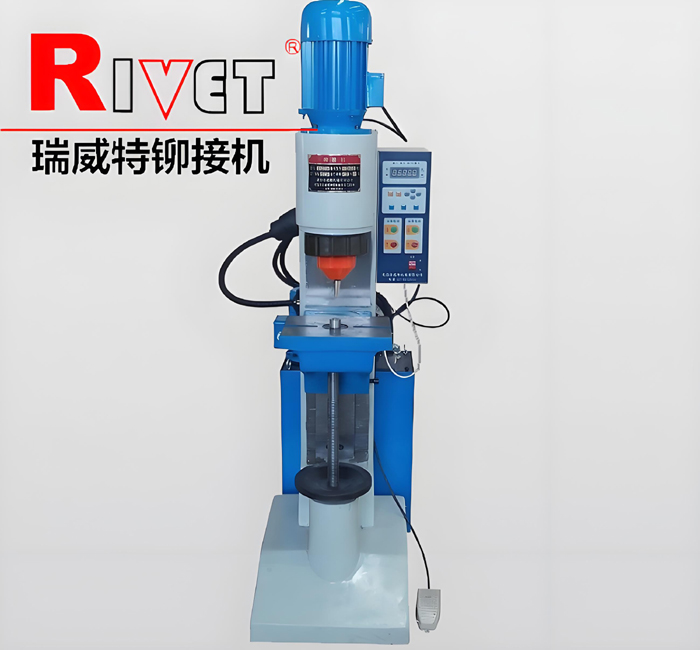

BM12 (Orbital riveting machine)

 Characteristics:

■Medium sized vertical style

■Rrocessing Dia.Ф12mm

■Hydraulic driven by stepless regulation

■Rotary part protected

■Large movable space of workbench

■Setting riveting time at will

■Can reserve hydraulic connector for jig

■Oil tank and fuselage can be separated

■Customized available

BM12

Scope of application: instrumentation, hardware, electronic products,automobile  parts etc.

        The model of BM12 is a kind of medium sized orbital riveting machine and hydraulic driven. The machine applied orbital technology to performance rivets by cold forming, T-slot of workbench fixing clamping available and workbenchadjustment up and down to meet variety of workpiece's body and shape's requirement. The fixture positioning hole is coaxial with spindle to ensure riveting process accuracy, electric control system equipped with counter and time relay to made the operation easy and simple. Hydraulic system equipped with throttle valve to control riveting pin speed effectively, and oil tank joint with fuselage or separated from fuselage as optional easy to transportation and move.

Specification:

▲Riveting diameter                       Ф 12mm ( solid steel rivet )

▲Riveting pressure                          20Kn

▲Stroke                                               30mm

▲Available working space                340mm

▲Throat depth                                    160mm

▲Riveting tool length                          50mm

▲Eccentric angle                                4°

▲Motive force                                     Hydraulic

▲Oil-tank volume                                60 Liters

▲Pressure brand                               46# (ISO)

▲Workbench dimensions                 260mmx290mm

▲Power                                              1.3Kw

▲Physical size                                   730mm×500mm×1570mm

▲Net weight                                        350Kg
