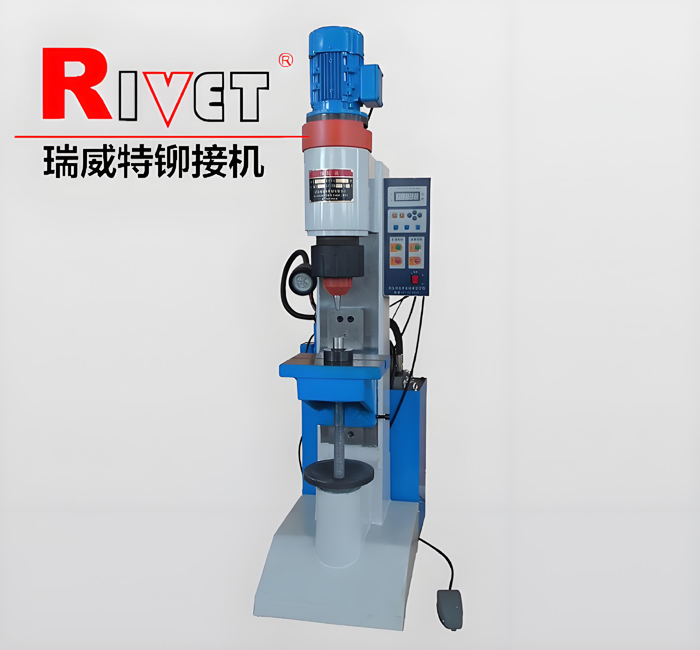

BM12-C (Orbital riveting machine)

Characteristics:

■Medium sized vertical style

■Workbench adjustable

■Pressure by stepless regulation

■Double hand buttons or foot pedal

■Rotary part protected

■Setting process time as will

■Automatic or manual functions

■Customized available

BM12-C

Scope of applications :Daily hardware, electronic products, automotive parts etc.

     The model of BM12-C is a kind of vertical hydraulic riveting machine and apply to medium sized rivets with at deepen position. The machine application of  orbital structure to makes processing more stability, T-slot fixing clamping apparatus available, positioning hole and axis are coaxial to insure riveting precisions. Hydraulic system equipped with one-way throttle valve to control stroke speed effectively. Workbench adjustment of down and up to meet different workpiece's body and shape, stroke control by micro scale system and accurate is±0.05mm.

Specification:

▲Riveting diameter                     Ф 12mm ( solid steel rivet )

▲Riveting pressure                       20Kn

▲Stroke Length Range                  60mm

▲Availble working space               300mm

▲Throat depth                                 160mm

▲Riveting tool length                       50mm

▲Eccentric angle                            4°

▲Motive force                                  Hydraulic

▲Oil-tank volume                             60Liters

▲Pressure oil brand                        46# ISO

▲Workbench dimensions               260mm×200mm

▲Power                                            1.3Kw

▲Physical size                                 730mm×500mm×1570mm

▲Net weight                                     380Kg
