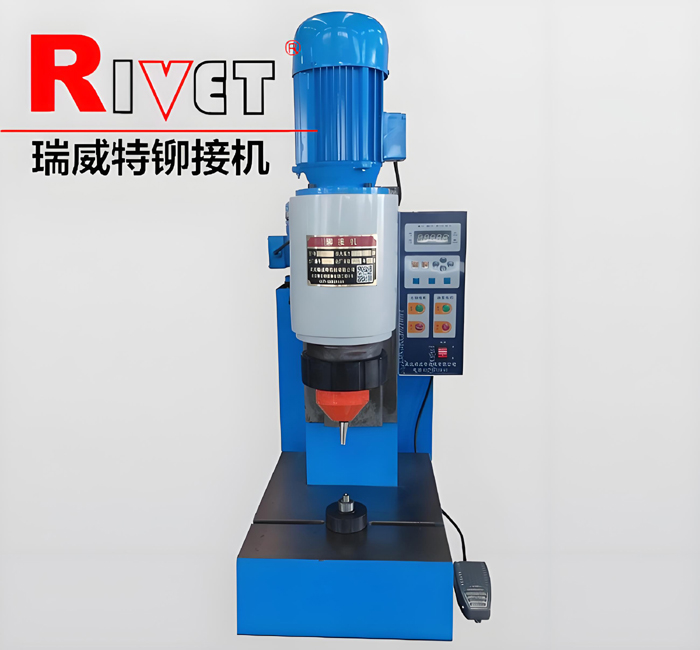

BM12T (Orbital riveting machine)

Characteristics:

■Desktop style

■Riveting diameter Ф 12mm

■Power head movable

■Pressure by stepless regulation

■Double-hand button or foot pedal

■Rotary part portected

■Automatic and manua functions

■Customized available

BM12T

Scope of applications : Daily hardware, eclectronic products, hardware  tools,automobile  parts etc.

       BM12T is a kind of medium sized orbital riveting machine and hydraulic drive. It has applied  orbital technology by cold formation. The power head adjustment up and down to meet variety of workpiece's body and shape 'srequirement , the positioning hole is coaxial with spindle to ensure riveting process accuracy. Hydraulic system equipped with throttle valve to control piston speed effectively. Electric control system equipped with counter and time relay to make the operation more easy and simple.

Specification:

▲Riveting diameter                    Ф12mm ( solid steel rivet )

▲Riveting pressure                      20Kn

▲Stroke Length Range                30mm

▲Available work space                220mm

▲Throat depth                             160mm

▲Riveting tool length                   50mm

▲Eccentric angle                           4°

▲Motive force                               Hydraulic

▲Oil-tank volume                          60Liters

▲Pressure oil brand                      46# ISO

▲Workbench dimensions            360mm×290mm

▲Power                                         1.3Kw

▲Physical size                              500mm×400mm×980mm

▲Net weight                                   300Kg
