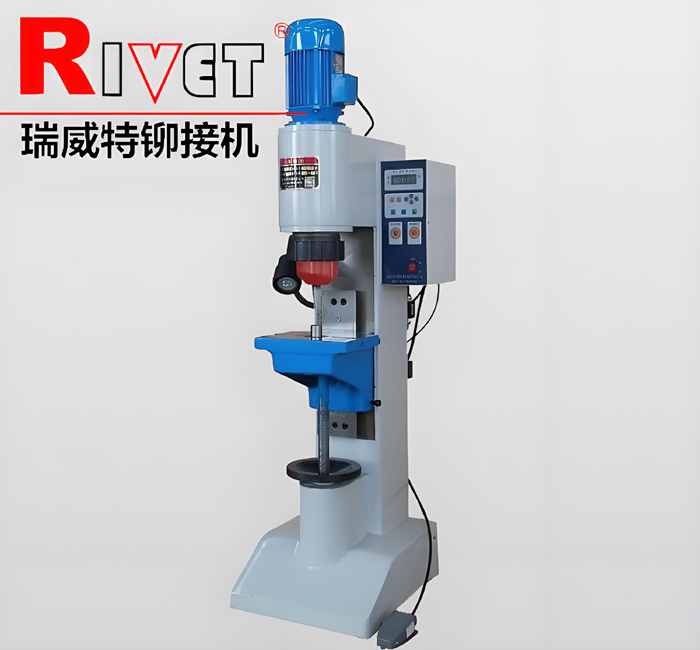

BM12Q (Orbital pneumatic riveting machine)

Characteristics:

■Medium sized vertical style

■Max. processing Dia.Ф 12mm

■Pneumatic driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions

JM12Q

Customized available:

      The model of BM12Q is a medium sized orbital riveting machine with pneumatic force,vertical style, machining process is stable and perfect result due to applied advanced orbital technology, T-slot fixing the clamping appaavailable,positioning hole is coaxial with spindle to insure the riveting accuracy. Pneumatic system equipped with two way throttlevalves to control stroke speed and return speed effectively. Power head fixed and bench adjustment up and down to meet different workpiece's body and shape. Electricity control system equipped with counter and time relay to conveniency operation.

Specification:

▲Max riveting diameter                     Ф 12mm ( solid steel rivet )

▲Max riveting pressure                      20Kn

▲Stroke                                               30mm

▲Available working space                340mm

▲Throat depth                                    160mm

▲Riveting tool length                          50mm

▲Eccentric angle                                4°

▲Motive force                                     Pneumatic

▲Workbench dimensions                 260mmx290mm

▲Power                                              0.7Kw

▲Physical size                                   730mm×500mm×1570mm

▲Net weight                                        350Kg
