BM16 Orbital riveting machine|Hydraulic riveter|Spin riveting machine|vertical riveting machine

Product classification： Orbital riveting machine

Used for permanent connection of metal plates and mechanical components through rivets or self-locking fasteners (such as pin shafts, semi hollow rivets), suitable for materials such as carbon steel and stainless steel

Order Hotline ：0086 13971118161

Consult

product details

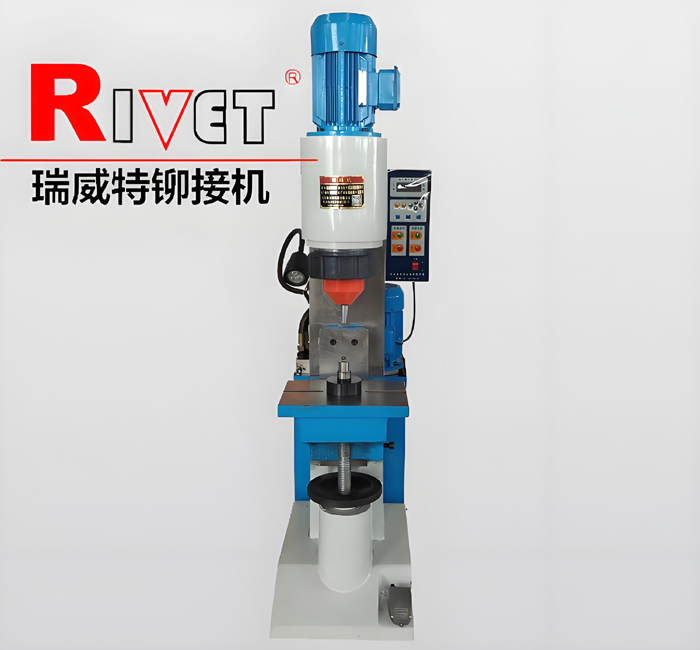

BM16 (Orbital riveting machine)

Characteristics:

■Vertical style

■Workbench movable

■Riveting diameter Ф 16mm

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set processing time at free
■Customized available

BM16

Scope of applications :Daily hardware, electronic products, automobile parts etc.

BM16 machine is a medium-sized orbital hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary Base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil. The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and radial design, the riveting operation goes with ease and the workpiece finishing is created smoothly.
