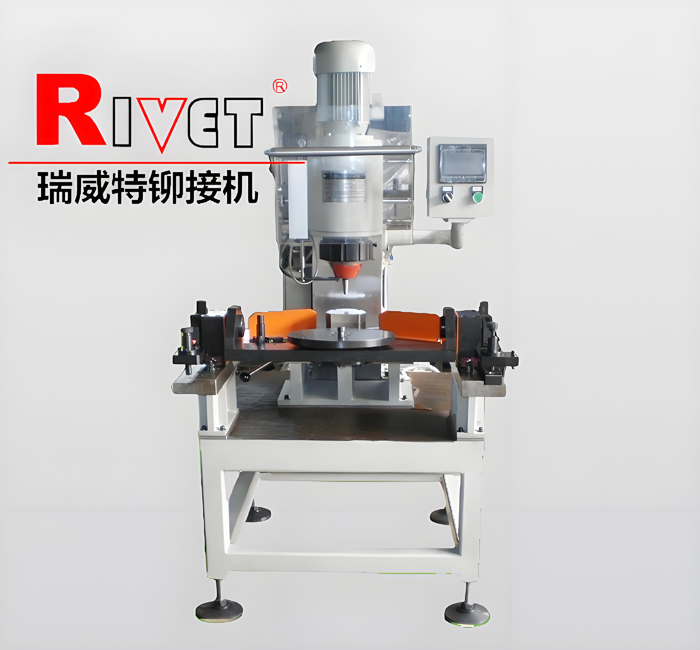

JM12QA(Aircraft brake pad riveting machine)

Characteristics:

■Mechanical turnover,easy assembly rivet

■Dividing device,automatic alignment and lock

■5.6 Inches color LCD touch screen

■Riveting height can be controlled

■Riveting pressure and speed stepless adjustable

■ Riveting surface smooth & beautiful

■ Applicable for all kinds of specifications and single side or double side brake pad‘s process

     JM12Q-A aircraft brake pad riveting machine is special designed for China Southern Airline Service Department developed special purpose riveting machine for process aircraft brake pad, this machine can process various specifications and types of aircraft brake pad such as Boeing aircraft, McDonnell aircraft, and airbus etc.

Specification:

▲Max.pressure                              20Kn

▲Stroke                                          30mm

▲Max.processing ablity               Ф12mm

▲Available working space          145mm

▲Throat depth                               160mm

▲Riveting tool length                     50mm

▲Eccentric angle                           4°

▲Rotation rate                               960rpm

▲Power                                          0.75Kw

▲Physical size                               820mmx850mmx1450mm

▲Net weight                                   320Kg

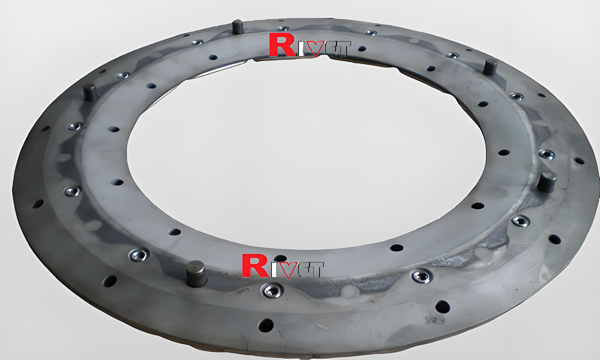

Processed sample
