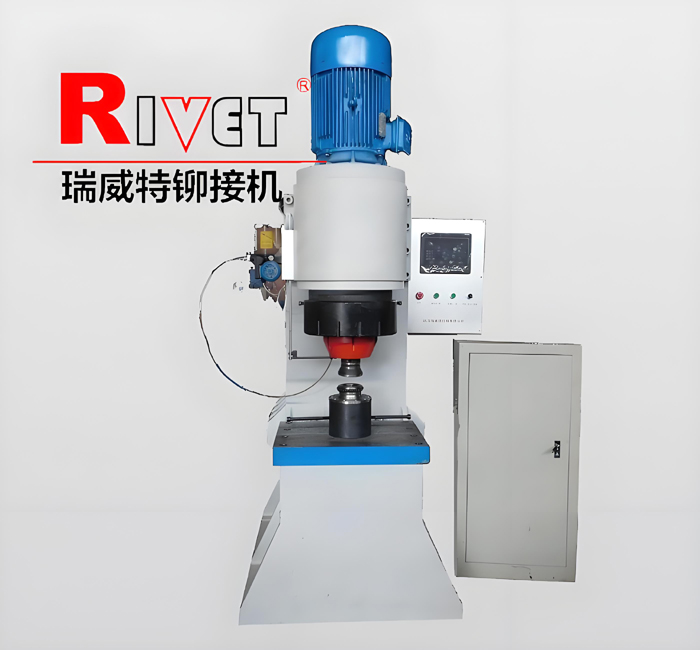

JM50-PLC (Heavy duty riveting machine)

Characteristics:

■Heavy duty riveting machine

■Max. riveting diameter Ф50mm

■Pressure by stepless regulation

■Stroke speed adjustable

■Hand button or foot-pedal as optional

■Rotary parts protected

■Set riveting time as will

Scope of applications : The daily hardware, automobile parts, mine-machinery etc. （Customized availble）

     The model of JM50 is a kind of heavy duty riveting machine to meet large rivet diameter's requirement, the hydraulic driven ,the machine is more stable and perfect processing result due to by advanced radial technology. The workbench adjustment up and down to meet varies of workpiece's body and shape's requirement, T-slot fixing clamping apparatus available, Hydraulic system equipped with throttle valve to control stroke speed effectively. Positioning hole is coaxial with spindle to ensure riveting accuracy at ±0.05mm.

Specification:

▲Max. riveting diamete                           Ф 50mm ( solid  steel rivet )

▲Max. riveting pressure                         200Kn

▲Pressure system output                       2.5MPa

▲Stroke Length Range                           40mm

▲Available working space                      380 mm

▲Throat depth                                          325 mm

▲Riveting tool length                                62mm

▲Spindle eccentricity                              4°

▲Motive force                                           Hydraulic

▲Oil-tank volume                                     140 Liters

▲Pressure oil brand                                46 # (ISO)

▲Dimension of workbench                     510 mm×680 mm

▲Power                                                   15Kw

▲Physical size                                         1185 mm×1000 mm×2400 mm

▲Net weight                                             5000Kg
