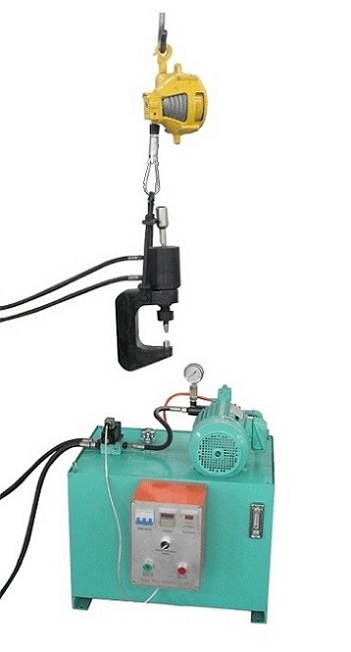

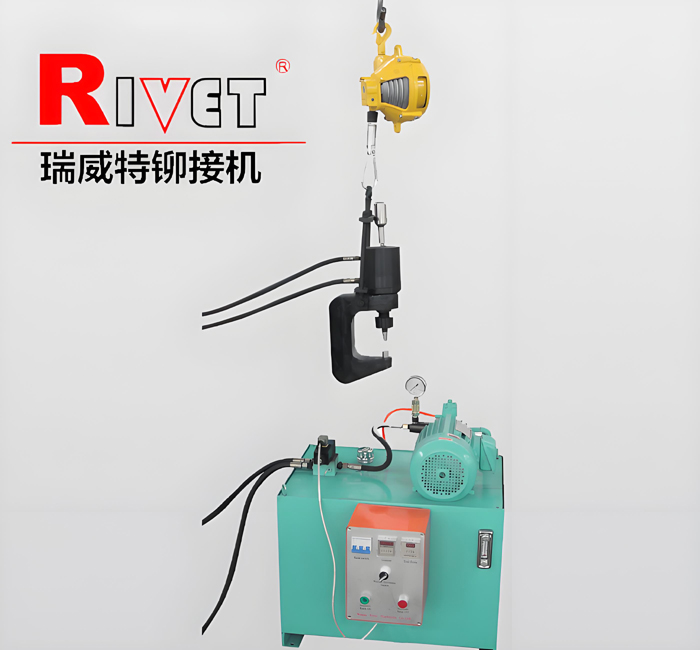

XGM-5A (Hanging riveting machine)

Characteristics:

■Hanging and movable style

■Max.process ability Ф 8mm (Aluminium rivet)

■Manual and automatic switching

■Hydraulic power pack connect with variety of C-gun available

■Any direction operation

■Short-circuit protector

      XGM-5A  is a kind of smaller hydraulic power pack with C-gun apply to ventilation engineering, duct flanges, ladder hinge etc, it has characteristics of  compact and lightweight, firmly after processed, easy to operating and maintenace.

Specification of XGM-5A

▲Max.pressure                                 80Kn

▲Oil punp output                              31.5MPa

▲Frequency of process                  14-25 Times/Min

▲Max.process diameter                  Ф5mm

▲Rated flux                                        18L/Min

▲Poston stroke                                 20mm/ 30mm optional

▲Power                                              2.2Kw

▲Throat depth                                   150mm

▲Oil-tank volume                               100 L

▲Length of hose                                8M/ 10M  Optional

▲Weight                                             80Kg
