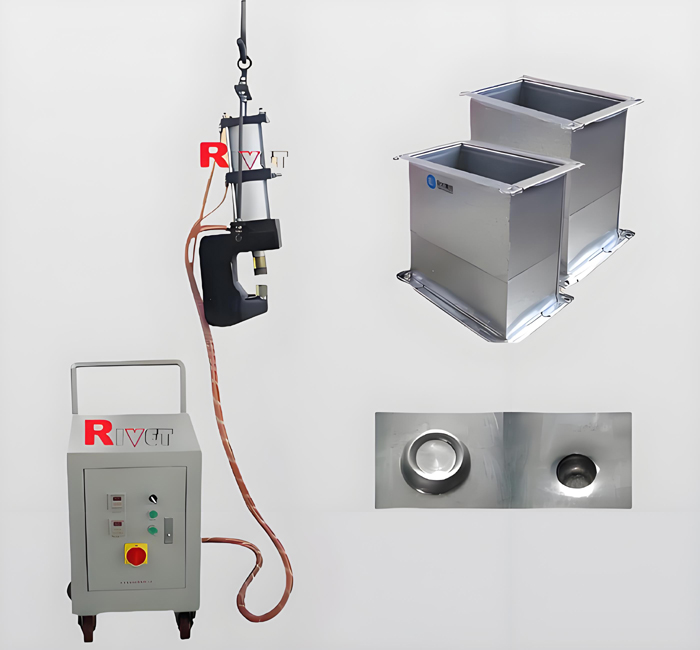

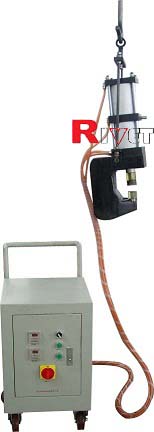

XWMZ-8(Portable rivetless riveting machine)

Characteristics:

■Portable style (hanging structure)

■Processing from different directions

■Suitable for connect metal sheet thickness less than 3mm

■Pressure display with stepless regulator

■Can change different "C"-gun

■Any direction process available

■Equipped with short circuit protection

■Never leakage and almost no maintenance

        Air boosting cylinder is a kind of portable riveting machine for processing ventilation engineering and duct flanges, it has characteristics of firmly after processing and flexible operation, noice free and easy maintenance etc.

Specification of XWMZ-8

▲Max.pressure                                    80Kn

▲Cylinder stroke                                 75mm

▲Compulsive stroke                           5mm

▲Frequency/Min                                 14-25

▲Thickness/Galvanized sheet           3 mm

▲Throat depth                                     150mm

▲Power                                                0.05Kw

▲Rated air comsumption                   0.04M³/Min

▲Air source                                         5-6kgf/cm²

▲Pressure adjusting                          Stepless regulation

▲Aerosol lubrication                           Yes

▲Hanging system balancer               Yes

▲Control box size and weight          400mmx580mmx820  and 25Kg
