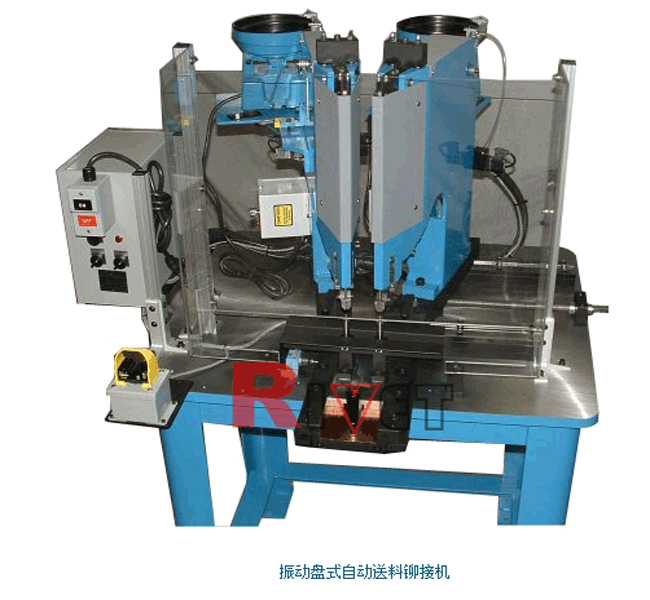

ZDM-5 (Vibration plate automatic feeding riveting machine)

Characteristics:

■Desktop or vertical as optional

■Pneumatic or hydraulic as optional

■Select and assembly rivets automatically

■Select rivet by vibration plate

■Applicable  hollow or semi-hollow rivet less than Φ10mm

■Time-lapse shut down automatically

■Reserve synchronous fixture connect mouth available

■Auto/Semi-auto/Manual/Inching switching

Procedure:

▲Manual put workpiece on postion and clamping by fast cylinder

▲Start machine ,fixture and workpiece feeding to first position and locked.

▲Air cylider action and riveting processing

▲Finish one point processing

▲Air cylinder action and return

▲X.Y direction move fixture to next point

▲Machine working circulation

▲Finish one workpiece

Safe countermeasure:

1.All moves system equiped with limit switch

2.All moves system has mechanical limit countermeasure

3.Each move system equipped with zoro position switch

4.Machine covered with transparent protective and front can disassembly

NC Table:

a.Rectanular track

b.Servo motor drive

c.Travel switch determine zero position

d. Positioning accuracy 0.02mm

Main brand:

 ◎PLC and modules                         Siemens

◎Touch screen                                 Taiwan(weilen)

◎Linear rail & ball screw                 Taiwan(Hiwin)

◎Servo moter and driver                 Taida

◎Feeding moter                               Korea
