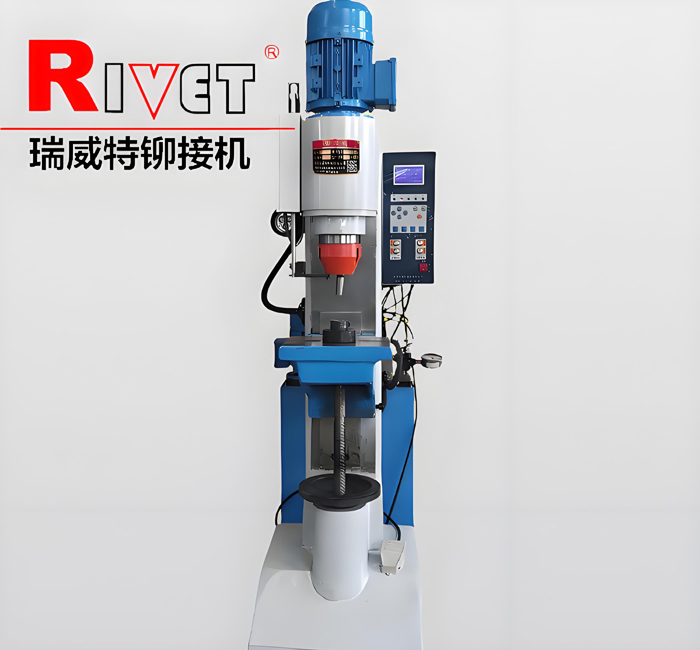

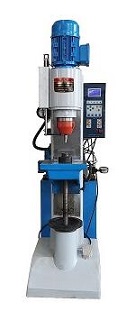

JM9-XJ (Radial riveting machine)
Precision stroke control riveting machine

Characteristics:

■Medium sized with vertical style

■Processing Dia.Φ9mm (solid steel rivet)

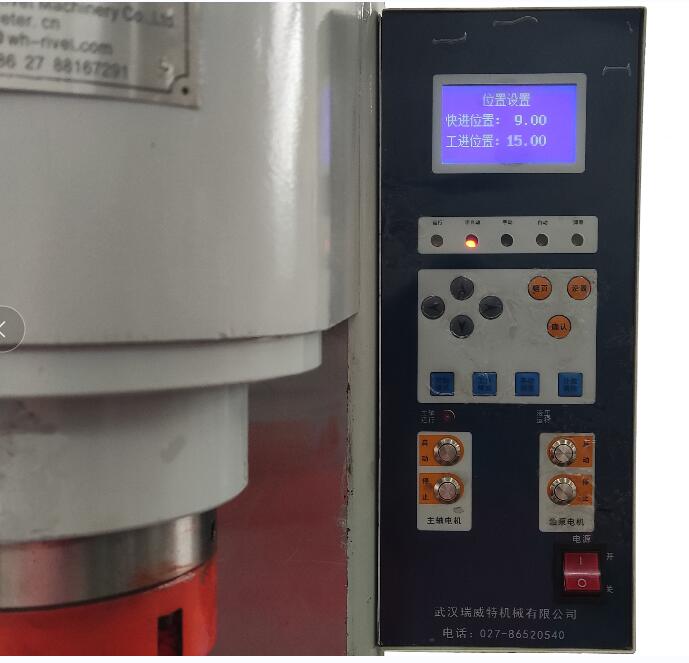

■ PLC control
■Working mode selection
■Closed loop control, repeat accuracy ±0.02mm

■Hydraulic drive with stepless regulation

■Security mask covered rotating part

■Workbench adjustable with large space available

■Setting riveting time as will, manual ,auto switching

■Can reserve hydraulic connector for fixture

■Hydraulic system and fuselage can be separated

      The precision stroke control riveting machine is the third generation riveting machine developed by our company. Its purpose is to meet the high requirements of high-end customers for the consistency of riveting parts. In addition to optimizing the structure and functions of the second-generation riveting machine, this machine adds a small PLC controller to achieve closed-loop control, precise stroke parameter setting, teh rapid traverse of the riveting head and working speed. The work advance is selected according to the part setting and working mode, so as to make the riveting repeat accuracy. Effectively and accurately control within±0.02mm. This machine is based on the principle of radial riveting machine, the appearance is smooth after riveting, and the part consistency is extremely high. It is the best riveting equipment for auto parts and precision electronic products.

Specification:
▲Riveting diameter            Ф 9mm (solid steel rivet )
▲Repeatable accuracy           ±0.02mm
▲Riveting pressure               14Kn
▲Stroke                                      30mm
▲Available working space       270mm
▲Throat depth                           135mm
▲Riveting tool length                 50mm
▲Eccentric angle                        4°

▲Motive force                            Hydraulic
▲Oil-tank volume                       60Liters
▲Pressure oil brand                  ISO 46#
▲Area of work bench               360mm×290mm
▲Power                                      0.92Kw
▲Physical size                           700mm×500mm×1417mm
▲Net weight                               250Kg
